构建前端
为确保你能连接到 Gatechain 区块链，请确保你的浏览器钱包已配置好连接到 Gatechain。
本教程将向你展示如何构建一个前端应用，该应用允许钱包连接，并通过 JSON-RPC 端点向 Gatechain 发起 RPC 请求以获取当前区块号。
本项目的目标是使用原生 JavaScript 与 Gatechain 交互，并理解 JSON-RPC 请求的基础知识。
要求
在开始之前，请确保你的电脑上已安装以下内容：
- VSCode IDE（推荐）
- NVM 或 Node（v22 或更高版本）
- pnpm、yarn 或 npm
代码设置
让我们首先创建项目文件夹。
mkdir frontend-Gatechain;
cd frontend-Gatechain;
从这里开始，我们将安装一些依赖项，这些依赖项将允许我们运行 HTTP 服务器来在网页中查看我们的 HTML 和 JS。
# FROM: ./frontend-Gatechain;
pnpm init;
# [Expected Output]:
# {
# "name": "frontend-Gatechain",
# "version": "1.0.0",
# "description": "",
# "main": "index.js",
# "scripts": {
# "test": "echo \"Error: no test specified\" && exit 1"
# },
# "keywords": [],
# "author": "",
# "license": "ISC"
# }
安装依赖项，这将允许我们实时重载页面并创建 http 服务器：
# FROM: ./frontend-Gatechain;
pnpm add -D live-server;
接下来，我们将创建一个名为 app 的新文件夹，并在其中创建 index.html 和 scripts.js 文件：
# FROM: ./frontend-Gatechain;
mkdir app;
touch app/index.html;
touch app/scripts.js;
echo "node_modules" > .gitignore;
git init;
让我们先修改 index.html 来显示一些内容：
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Gatechain Frontend</title>
</head>
<body>
<h1>Gatechain Frontend</h1>
</body>
</html>
现在让我们通过在 package.json 中添加运行命令来查看这些更改：
{
"name": "frontend-Gatechain",
"version": "1.0.0",
"description": "",
"main": "index.js",
"scripts": {
"dev": "./node_modules/.bin/live-server --port=3001 --watch=app --mount=/:./app",
"test": "echo \"Error: no test specified\" && exit 1"
},
"keywords": [],
"author": "",
"license": "ISC",
"devDependencies": {
"live-server": "^1.2.2"
}
}
通过运行以下命令启动我们的服务器：
# FROM: ./frontend-Gatechain;
pnpm dev;
# [Expected Output]:
# Mapping / to "/path/to/frontend-Gatechain/app"
# Serving "/path/to/frontend-Gatechain" at http://127.0.0.1:3001
# Ready for changes
创建我们的 UI
为了使我们的 UI 更容易制作，我们将通过 CDN 使用 Tailwind 来采用其 HTML 元素的类。
为此，我们将修改 index.html 文件，添加 Tailwind 的 CDN 脚本标签和我们的 scripts.js 文件。
注意：这是可选的，但可以让整体页面看起来更好一些。
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<script src="https://cdn.tailwindcss.com"></script>
<script src="scripts.js"></script>
<title>Gatechain Frontend</title>
</head>
<body class="bg-zinc-900 pt-24 lg:pt-0">
<main class="p-8">
<h1 class="text-2xl text-white mb-4">Gatechain Frontend</h1>
<p class="text-zinc-400 mb-4">Must use MetaMask for wallet connection.</p>
<!-- START: Main interaction to connect our wallet -->
<div class="mb-6">
<button
type="button"
disabled
id="button-connect"
class="h-10 bg-zinc-200 text-zinc-800 px-5 rounded-full font-medium disabled:bg-opacity-30"
>
Connect Wallet (Unsupported)
</button>
<div id="div-error-connect" class="mt-4 bg-red-300 rounded p-6 text-red-800 hidden"></div>
</div>
<!-- END -->
<hr class="border-zinc-700 mb-8" />
<!-- START: Main section that will appear when our wallet is connected -->
<section id="section-connected" class="hidden">
<h2 id="wallet-connection" class="text-xl text-zinc-200 mb-4">Wallet Connection</h2>
<p class="text-zinc-400 mb-4">If you're seeing this then your wallet is connected.</p>
<div class="mb-4">
<button
type="button"
id="button-disconnect"
class="h-10 mb-2 bg-zinc-200 text-zinc-800 px-5 rounded-full font-medium disabled:bg-opacity-30"
>
Disconnect*
</button>
<p class="text-sm text-zinc-300">
<small
>*Remember you're not really disconnecting unless the wallet removes the website from
Connected Sites.</small
>
</p>
</div>
<div class="mb-4">
<label class="block mb-2 text-zinc-600">Wallet Connected</label>
<code class="block bg-zinc-500 p-6 rounded bg-zinc-800 text-zinc-200">
<pre id="pre-wallet-address"></pre>
</code>
</div>
<div class="mb-6">
<label class="block mb-2 text-zinc-600">Network</label>
<code class="block bg-zinc-500 p-6 rounded bg-zinc-800 text-zinc-200">
<pre id="pre-wallet-network"></pre>
</code>
</div>
<hr class="border-zinc-700 mb-8" />
<h2 id="eth-blocknumber" class="text-xl text-zinc-100 mb-4">Get Gatechain Block Number</h2>
<p class="text-zinc-400 mb-4">
Will make a JSON-RPC request to Gatechain to retrieve the current block number with
<span class="bg-zinc-700 text-zinc-200 py-1 px-1.5 rounded">eth_blockNumber</span>.
</p>
<form id="form-eth-blocknumber">
<div class="mb-4">
<button
type="submit"
class="h-10 mb-2 bg-zinc-200 text-zinc-800 px-5 rounded-full font-medium disabled:bg-opacity-30"
>
Get Block Number
</button>
</div>
<!-- Where the results are displayed -->
<div class="mb-4">
<label class="block mb-2 text-zinc-600">Response</label>
<code class="block bg-zinc-500 p-6 rounded bg-zinc-800 text-zinc-200">
<pre id="pre-eth-blocknumber"></pre>
</code>
</div>
</form>
</section>
<!-- END -->
</main>
</body>
</html>
JavaScript 功能
现在我们已经设置好了 HTML 结构，让我们添加允许我们将钱包连接到浏览器的功能。
这将包含相当多的代码，但请查看注释以更好地了解所有功能。
// Main Function
// ========================================================
/**
* Main wallet connection interaction
*/
const connect = async () => {
console.group('connect');
// Hide errors when trying to connect
const devErrorConnect = document.getElementById('div-error-connect');
devErrorConnect.innerHTML = '';
devErrorConnect.classList = devErrorConnect.classList.value.includes('hidden')
? devErrorConnect.classList.value
: `${devErrorConnect.classList.value} hidden`;
// Attempt to connect to wallet with JSON-RPC request
try {
const accounts = await window.ethereum.request({
method: 'eth_requestAccounts',
});
const chainId = await ethereum.request({ method: 'eth_chainId' });
// Disable connect button
const buttonConnect = document.getElementById('button-connect');
buttonConnect.setAttribute('disabled', true);
buttonConnect.innerHTML = 'Connected';
// Show connected section
const sectionConnected = document.getElementById('section-connected');
sectionConnected.classList = '';
// Display wallet connected
const preWalletAddress = document.getElementById('pre-wallet-address');
preWalletAddress.innerHTML = accounts[0];
// Display current network connected
const preWalletNetwork = document.getElementById('pre-wallet-network');
preWalletNetwork.innerHTML = `${chainId}`;
} catch (error) {
console.log({ error });
devErrorConnect.innerHTML = error?.message ?? 'Unknown wallet connection error.';
devErrorConnect.classList = devErrorConnect.classList.value.replaceAll('hidden', '');
}
console.groupEnd();
};
/**
* Main function that disconnects from the browser
*/
const disconnect = () => {
console.group('disconnect');
// Hide connected section
const sectionConnected = document.getElementById('section-connected');
sectionConnected.classList = 'hidden';
// Enabled connect button
const buttonConnect = document.getElementById('button-connect');
buttonConnect.removeAttribute('disabled');
buttonConnect.innerHTML = 'Connect Wallet';
console.groupEnd();
};
/**
* Main function that handles the form request for a read JSON-RPC request
* @param {*} event
*/
const onSubmitEthBlockNumber = async (event) => {
event.preventDefault();
console.group('onSubmitEthBlockNumber');
// Reset & Set Loading State
const preEthBlockNumber = document.getElementById('pre-eth-blocknumber');
const button = document.querySelector(`#${event.currentTarget.id} button`);
button.setAttribute('disabled', true);
button.innerHTML = `${button.innerHTML} (Loading...)`;
// Attempt request for block number
try {
const result = await window.ethereum.request({
method: 'eth_blockNumber',
});
console.log({ result });
preEthBlockNumber.innerHTML = `${result}\n\n// Block Number:\n// ${parseInt(result, 16)}`;
} catch (error) {
console.log({ error });
preEthBlockNumber.innerHTML = error?.message ?? 'Unknown JSON-RPC error.';
}
button.removeAttribute('disabled');
button.innerHTML = 'Get Block Number';
};
// Initial Script Loaded On Window Loaded
// ========================================================
/**
* Init
*/
window.onload = async () => {
console.log('WINDOW ONLOAD!');
// Get All Elements
const buttonConnect = document.getElementById('button-connect');
const buttonDisconnect = document.getElementById('button-disconnect');
const formEthBlockNumber = document.getElementById('form-eth-blocknumber');
// Add Interactions
buttonConnect.addEventListener('click', connect);
buttonDisconnect.addEventListener('click', disconnect);
formEthBlockNumber.addEventListener('submit', onSubmitEthBlockNumber);
// Check if browser has wallet integration
if (typeof window?.ethereum !== 'undefined') {
// Activate elements
buttonConnect.removeAttribute('disabled');
buttonConnect.innerHTML = 'Connect Wallet';
}
};
现在，如果我们使用已设置 MetaMask 的浏览器进行连接，我们可以看到以下交互。
注意：请确保你的钱包已设置为 Gatechain 网络。

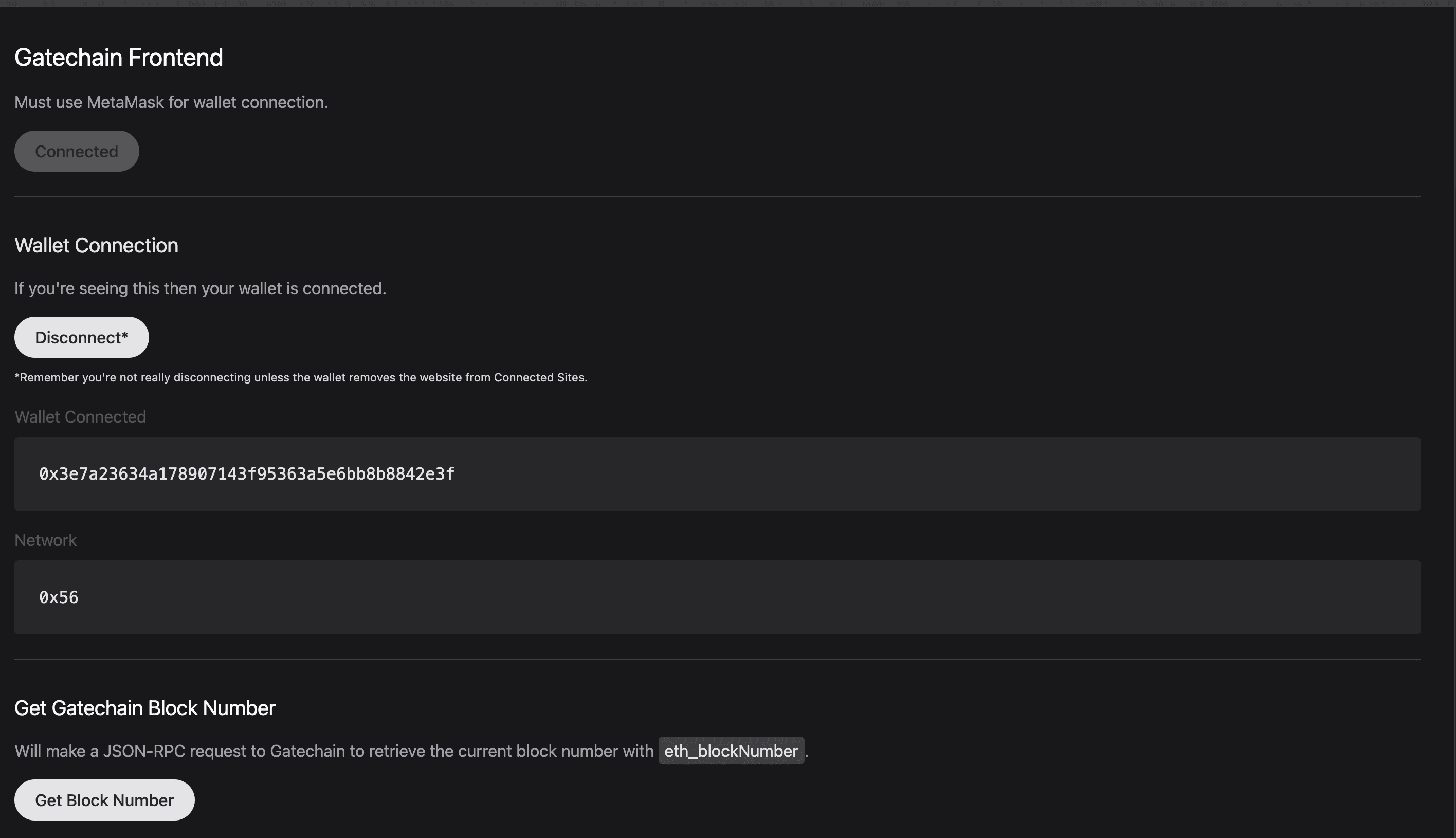

我们可以连接到网站并查看我们当前的钱包地址和当前链 ID。
如果我们提交表单并执行 RPC 请求，我们可以看到显示的结果。
下一步
有很多库和框架可以帮助加速构建 dApps，包括 React、NextJS、Svelte、Wagmi、Ethers、Viem、WalletConnect 和 RainbowKit 等。更多详情请参见开发者工具。
现在你已经了解了如何通过前端与 Gatechain 交互，请浏览一些开发者指南，开始构建智能合约或构建其他前端应用程序。
